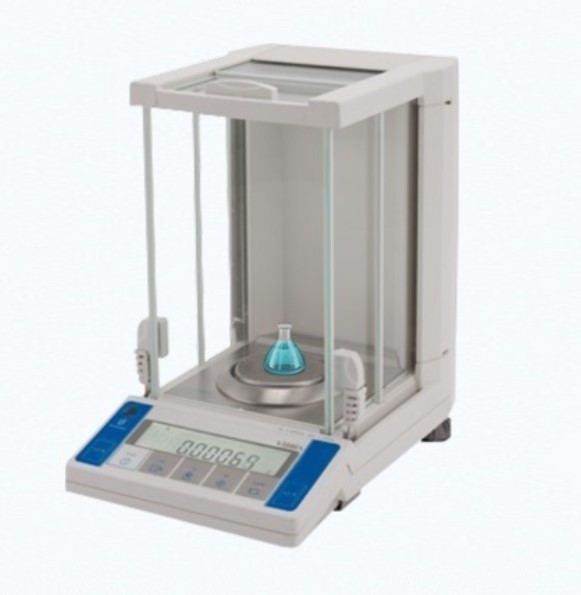

Analytical /Precision Balance
Analytical /Precision Balance
Laboratory Balances
The LF-series comes with a very high precision of 0.01 mg readability, much needed for advanced Research & Analysis. It is based on advanced Electro-magnetic force compensation Technology which has extremely low temperature drift and hence more reliable than Conventional Balances.
| Capacity | 92 g / 220 g |
| Read out (d) | 0.01 mg / 0.1 mg |
| Repeatability (sd.) | 0.02mg / 0.1mg |
| Non-Lineraity (typ.) | ±0.03 mg / 0.2 mg |
| Stabilization time(typ.) | S sec./ 3 sec |
| Pan size | 80 mm dia. |
| Calibration | With internal & external weight |
| Dimensions | 210 x 320 x 335 mm Approx. 5.5 kg |
| Weights | Approx. 5.5 kg |
| Power source | AC 110/ 240V DC 5.9V |
| Output | RS232C (D-sub 9p) |
| Measuring system | Electro-magnetic force compensation sensor |
| Tare | Full weighing ranger |
| Display | Back-lit LCD (brightne ss adjustable in three levels) |
| EC type approval | Available for all models (Class 1) |

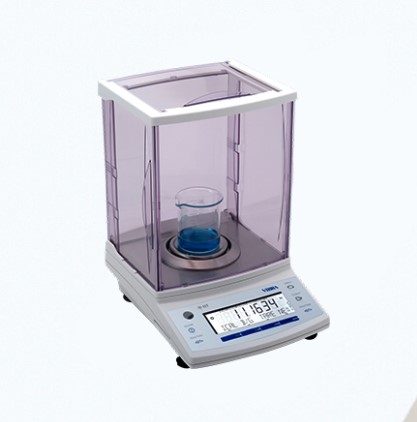

HT-HTR Analytical Balance
Salient Features:
- Simple, durable and unique structure
- Warm up time is reduced by 90% (1)
- Power consumption is cut by 60% (2)
The HT/HTR series is built on the highly Reliable Tuning Fork Sensing Technology. It comes with an option of in-built Calibration weight and offers may useful functions such as Weighing, Counting, Density measurement etc.Ideal for QC, Laboratory & Research Scientists.
Download Broucher...| Pan size | Ø 80 mm |
| Dimensions | 200 x 290 x 314 mm (WxDxH) |
| Weighing units | mg, g, ct |
| Power source | AC230V DC9V |
| Output | RS-232C and peripheral device output |
| Measuring system | Tuning-Fork Frequency Sensing |
| Tare | Full weighing range |
| Display | LCD with backlit |
| Modes | weighing, counting, percentage, unit conversion density |
| Weight | Approx. 2.9 kg |

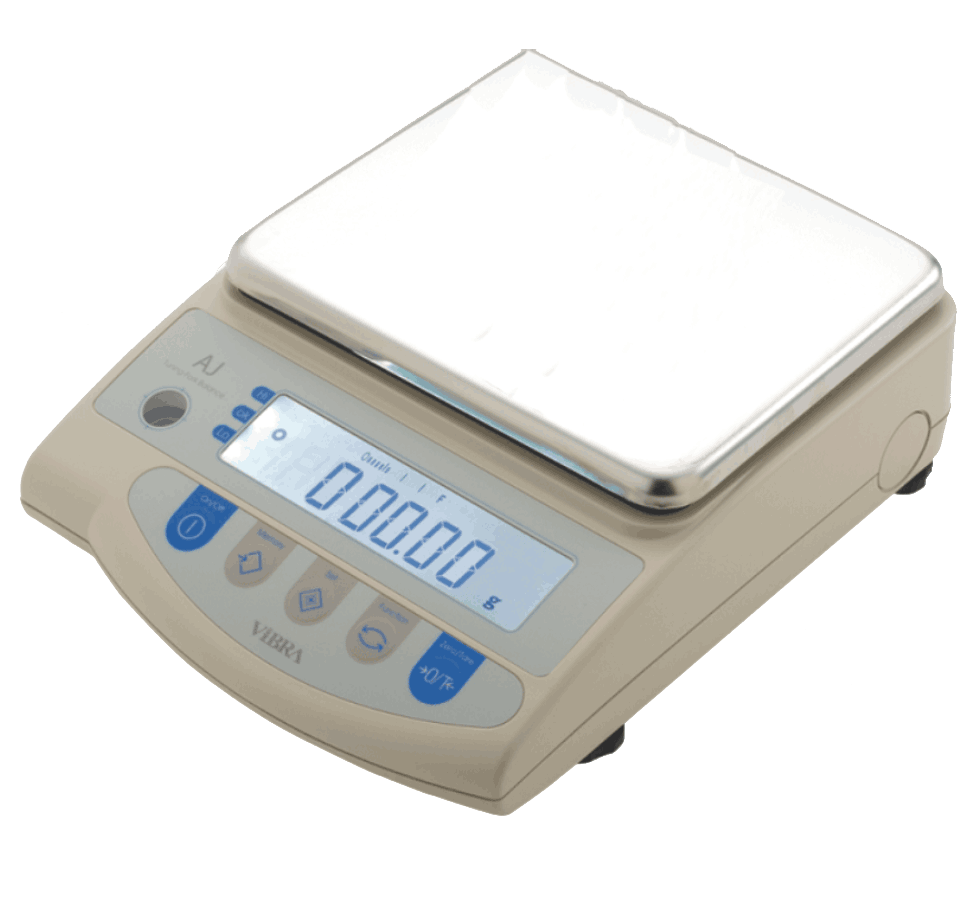

High performance super-precision balance (AJ-Series)
Salient Features:
- Tuning-Fork sensor technology
- RS-232C interface (standard feature)
| Sl. No | Capacity | Accuracy |
|---|---|---|
| 1 | 220 g to 620 g | 1 mg |
| 2 | 820 g to 4200 g | 10 mg |
| 3 | 8200 g to 12000 g | 100 mg |

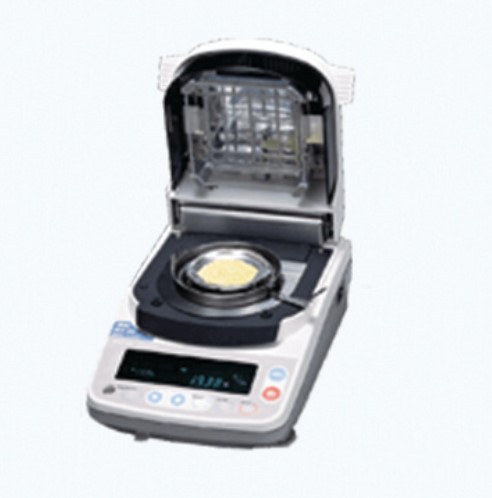

Moisture Analyzer
Accurate Measurement & Determination of Moisture content is extremely critical in many such as Paper, Tobacco, Pharmaceutical, Rubber, Automotive & Food Industry. Heated by a Halogen Lamp, the MX-50 Moisture Analyzer offers a Superior performance due to its rich features & Consistency.
Salient Features:
- Displays moisture rate changes over time in a graph
- Measures moisture rate in a minimum time with excellent accuracy
- Automatically determines the most suitable heating conditions in a short time
- Simple, durable and unique structure
| Measurement Method | 400 W straight halogen lamp heating system with SRA filter and SHS weighing technology |
| Max Sample Weight Capacity | 51 g |
| Weight Resolution | 0.001 g |
| Moisture Content Display | 0.01% / 0.1% |
| Moisture Content Accuracy over 1g | 0.10% |
| (Standard Deviation) over 5g | 0.02% |
| Heating Technology | Halogen lamp (Straight type, 400 Watt max, 5000 hours) |
| Drying Temperature (1°C increment) | 50-200°C |
| Memory of Measurement Programs | 20 sets |
| Measurement Programs | Standard Mode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode |
| Measurement Mode | Moisture content(Wet or Dry base) /Dry content/Ratio/Weight |
| Heating Mode | Standard / Quick / Step /Ramp |
| Display Type | Large VFD |
| Interface | RS-232C standard |
| Data Memory Function | 100 |
| Operating Temperature | 5-40°C (41-104°F) less than 85%RH |
| GLP/GMP/ISO | Available |
| Self Check Function | Standard |
| Communication Software | WinCT-Moisture standard |
| Sample Pan Size | Ø85 mm |
| Power | AC 200V to 240V (1.5A), 50/Hz, Approx. 400W |
| Physical Dimention/Weight | 215(W) x 320(D) x 173(H) / Approx. 6 kg |
| Standard Accessories | Sample Pans - 20, Pan Handles -2, Spoon, Test Sample (30g of Sodium Tartrate Dihydrate), CD-ROM (WinCT-Moisture), Glass Fiber Sheet, RS-232C Cable, Display Cover, Dust Cover, Instruction Manual, Quick Reference Card, Power Cable, Fuse |

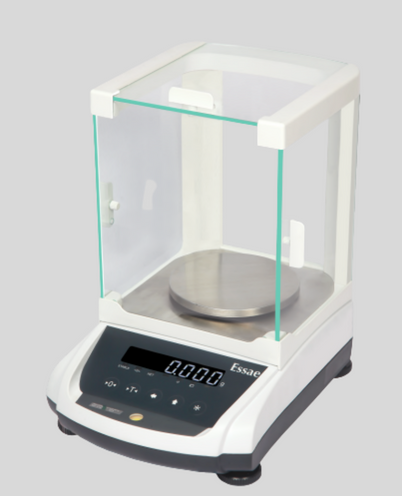

Precision Weighing Balance (AX-Series)
Salient Features:
- Weight Sensor
- Display with White LED
- Inbuilt Battery
- Serial Print
| Model | Maximum weighing capacity | Readability | Display resolution | Platter Size | Draft Shield |
|---|---|---|---|---|---|
| AX-220 | 220 g | 0.001 g | 2,20,000 | Dia 110 mm | Included |
| AX-320 | 320 g | 0.001 g | 3,20,000 | Dia 110 mm | Included |
| AX-620 | 620 g | 0.001 g | 6,20,000 | Dia 110 mm | Included |
| AX-1200 | 1200 g | 0.01 g | 1,20,000 | Dia 150 mm | Optional Accessory |
| AX-2200 | 2200 g | 0.01 g | 2,20,000 | Dia 150 mm | Optional Accessory |
| AX-3200 | 3200 g | 0.01 g | 3,20,000 | Dia 150 mm | Optional Accessory |
