Bench Scales
Bench Scales

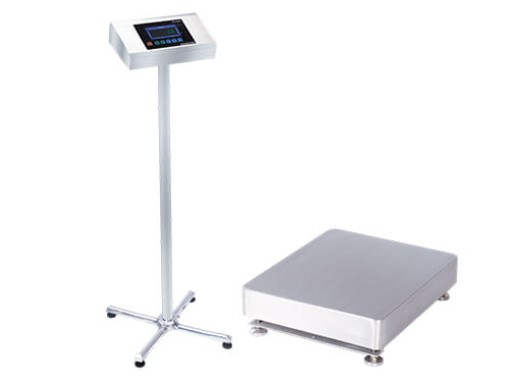

Bench Scale
Built to perform for any Industrial Applications
Download Broucher...Salient Features:
- Fully Stainless Steel (SS-304)
- IP-67 Indicator and IP-67 Tool Steel Load cell
- Heavy duty metal shielded cable for indicator
- Eco-friendly 14nm bright Green LED Display
Factory Options:
- RS-232 Interface
- Virtual COM port (USB)
- 4-20 mA digital output
- Internal Set point - TTL O/P
Accessories:
- Jumbo Display
- Printer
- SS Ramp
- External set point - relay output

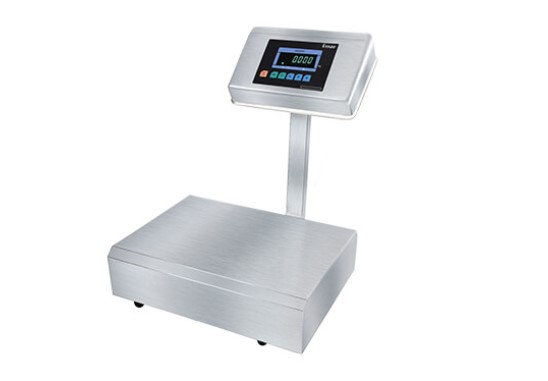

Digital Platform Weighing Scale
Sturdy and proven as a formidable complete scale for all Industrial applications, DX451 has a long product lifetime. As Digital Platform Weighing Scale with a range of weighing capacities, heavy-duty platform sizes and types, a choice of interfaces, and a spectrum of accessories, DX451 is the right choice for efficient, Precise measurement results.
Download Broucher...Salient Features:
- High resolution A/D converter
- Low on power consumption
- Eco-friendly 14mm bright Green LED Display
Bench Scale
Technical Specifications
| Model | DX-451 |
| Description | Digital scale |
| Processor | Microcomputer |
| No. of keys | 6 keys |
| Display type | Pure Green LED |
| Display Size | 14 mm |
| Display digits | 6 digits |
| Calibration method | Software calibration |
| Power supply | 230v,AC, 50 Hz |
| Power consumption | 6W |

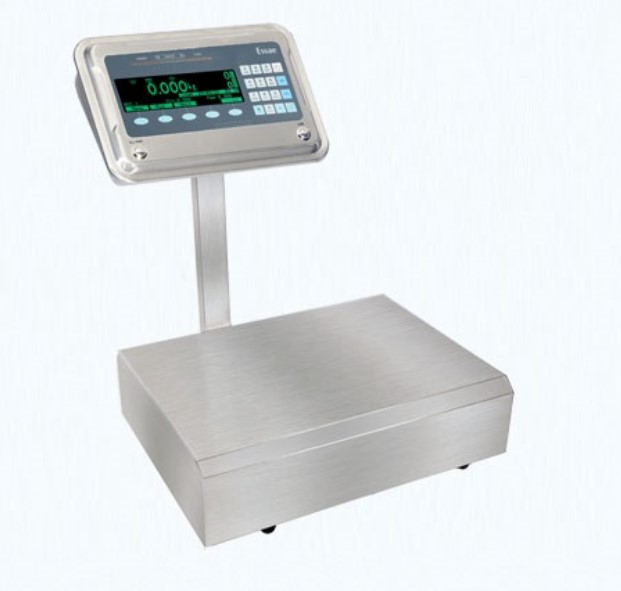

System Scale Bench Type
SI-850 System Scale Bench Type
The SI-850 Table Top Scale is our Flagship Indicator for the Industrial & Automation market. Apart from simple Weighing, it boasts of a wide range of useful applications such as Counting, Check-weighing, Weight Logging/Recording, Print Formats, Relay Control etc.
Download Broucher...Salient Features:
- 32-bit ARM processor and 24-bit precision delta-sigma ADC
- Automatic self-diagnostic function for easy trouble shooting
- Windows based PC application software (Compatible for Serial & Ethernet port )
| Weighing units | g, kg, litre, carat (selectable) |
| Calendar/clock | Date/time available through in-built RTC |
| Weight recording | Automatic or manual |
| Printing data | Bill print (for each transaction) & List print (summary reports) |
| Memory | 4 MB Flash (optionally expandable upto 8MB), 25,000 transaction records |
| Display type | Graphic LCD, 256X64 pixels |
| Standard interfaces | 2 x RS-232 serial USB 2x port (for keyboard or barcode scanner) 3x Relay |
| Optional interfaces | 1 x Ethernet GPS Receiver Wi-Fi (Range up to 20m line of sight) 4-20mA 21-CFR |
| Others | External scale/balance interface through RS-232, only for selected Essae models |
